Querying msExchDelegateListLink in Exchange Online with PowerShell

There are a number of articles that describe the relationship between the FullAccess permission of an Exchange mailbox and the msExchDelegateListLink attribute. Here are two good ones:

In short, this attribute lists all the other mailboxes your mailbox has FullAccess to, unless AutoMapping was set to $false when assigning the permission. It can be a handy attribute to query when trying to learn what mailboxes might appear in an end-user’s Outlook profile.

This attribute is synced to Office 365 via Azure AD Connect, however, for whatever reason, it is not synced back on-premises for new or migrated mailboxes. It is also not exposed in Get-User, Get-Mailbox, Get-MailboxStatistics, Microsoft Graph or Azure AD Graph.

The information is however included in the user’s AutoDiscover XML response. This is how Outlook knows what mailboxes to mount. If you want to look at this data manually, use the ctrl+right-click tool from the Outlook icon on the system tray. This article describes how to do that, if somehow you’re reading this but don’t already know about this tool:

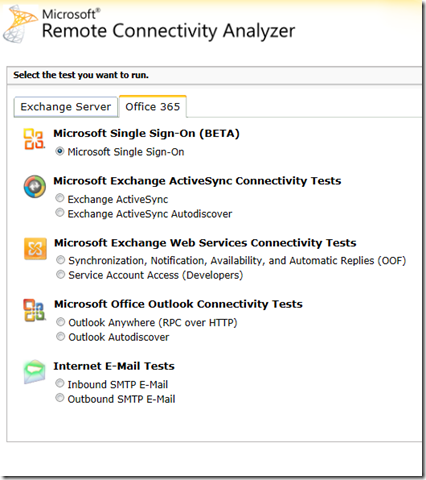

You can also look at the AutoDiscover XML file via the venerable TestConnectivity.Microsoft.com web site. Look at the bottom of of the file, and you’ll see “AlternativeMailbox” entries.

<AlternativeMailbox>

        <Type>Delegate</Type>

        <DisplayName>crowley test 1</DisplayName>

        <SmtpAddress>crowleytest1@mikecrowley.us</SmtpAddress>

        <OwnerSmtpAddress>crowleytest1@mikecrowley.us</OwnerSmtpAddress>

      </AlternativeMailbox>

      <AlternativeMailbox>

        <Type>Delegate</Type>

        <DisplayName>crowley test 2</DisplayName>

        <SmtpAddress>crowleytest2@mikecrowley.us</SmtpAddress>

        <OwnerSmtpAddress>crowleytest2@mikecrowley.us</OwnerSmtpAddress>

</AlternativeMailbox>

While not exactly the msExchDelegateListLink attribute, its the same difference.

This is neat, but to be useful at scale, we need to query this in PowerShell. Fortunately, there are two methods to fetch the AutoDiscover XML.

You can query these endpoints directly or through the the Exchange Web Services (EWS) API. If you don’t have a preference, Microsoft’s documentation recommends SOAP, which is the approach I’ll discuss here.

Using Invoke-WebRequest and SOAP, we can request specific attributes, such as AlternateMailboxes. Other useful attributes are listed in this article:

While I’m not a developer (developers, please keep your laughter to yourself!), I did manage to cobble together the following SOAP request, which will be the string we “post” to the AutoDiscover service. You’ll notice I’ve marked the user we’re querying and any attributes I might want in bold (modify this list to suit your needs):

<soap:Envelope xmlns:a=”http://schemas.microsoft.com/exchange/2010/Autodiscover&#8221;
xmlns:wsa=”http://www.w3.org/2005/08/addressing&#8221;
xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221;
xmlns:soap=”http://schemas.xmlsoap.org/soap/envelope/”&gt;
<soap:Header>
<a:RequestedServerVersion>Exchange2013</a:RequestedServerVersion>
<wsa:Action>http://schemas.microsoft.com/exchange/2010/Autodiscover/Autodiscover/GetUserSettings</wsa:Action&gt;
<wsa:To>https://autodiscover.exchange.microsoft.com/autodiscover/autodiscover.svc</wsa:To&gt;
</soap:Header>
<soap:Body>
<a:GetUserSettingsRequestMessage xmlns:a=”http://schemas.microsoft.com/exchange/2010/Autodiscover”&gt;
<a:Request>
<a:Users>
<a:User>
<a:Mailbox>bob@contoso.com</a:Mailbox>
</a:User>
</a:Users>
<a:RequestedSettings>
<a:Setting>UserDisplayName</a:Setting>
<a:Setting>UserDN</a:Setting>
<a:Setting>UserDeploymentId</a:Setting>
<a:Setting>MailboxDN</a:Setting>
<a:Setting>AlternateMailboxes</a:Setting>
</a:RequestedSettings>
</a:Request>
</a:GetUserSettingsRequestMessage>
</soap:Body>
</soap:Envelope>

(For this post, I only care about AlternateMailboxes.)

AutoDiscover requires authentication, so we’ll also need to use the Get-Credential cmdlet. Interestingly, any mailbox can query the AutoDiscover response for any other user in the Office 365 tenant. This means, through PowerShell, I can look up the msExchDelegateListLink / AlternativeMailbox values for other users (even without administrative privileges).

I’ve written a function to return the results in a PowerShell array like this:

Get-AlternateMailboxes-Example



I should also point out:

  • It has the Exchange Online URL hard-coded within, though you could adapt this for other URLs if you’d like.
  • Both SMTPAddress and Credential parameters require valid Exchange Online mailboxes (though, as previously mentioned they do not need to be the same mailbox).

Usage Example:

Get-AlternateMailboxes -SMTPAddress bob@contoso.com -Credential (Get-Credential)

Finally, here is the script itself:



Guest Appearance on the Exchange Server Pro Podcast

A few days back, I had an opportunity to chat with Paul Cunningham on his Exchange Server Pro Podcast. Paul is a world-renowned Exchange Server expert and Microsoft MVP, based out of Australia. We discussed ways to protect Exchange from attack, along with other security concepts while responding to the recent news around “OWA Vulnerabilities”.false-true

If you’ve got 30 minutes , check it out!

Podcast Episode 4: Securing Outlook Web App (OWA) and Exchange Server with Mike Crowley

A New and an Updated PowerShell Script

NOTE: Updated November 2016 to include -ServersToQuery and -StartTime and parameters.

e.g.

.\RDPConnectionParser.ps1 -ServersToQuery Server1, Server2 -StartTime "November 1"

————————–

Hey everyone, yes I’m still alive!

Connection Report for Remote Desktop

I wrote a script that connects to one or multiple servers and captures Remote Desktop logons, disconnects, reconnects and logoffs along with the connecting IP:

Download RDPConnectionParser.ps1 here

Recipient Address Report (Formally ProxyAddressCount)

I also updated the “Exchange Proxy Address (alias) Report” script.  It now includes a few environment metrics, as well as the regular CSV-style output:

Download the updated script here

Converting SMTP Proxy Addresses to Lowercase

Update: Be aware, this script has not been tested with SIP, X400 or other address types. I am working on an update to validate these scenarios, but in the meantime, proceed at your own risk with these address types.

I recently encountered a question in an online forum where someone asked for a script to convert all of their user’s email addresses to lower case values.  While this doesn’t affect the message delivery, it can have an impact on aesthetics when the address is displayed in an external recipient’s email client.  An Exchange Email Address Policy can do this to some degree, but I wanted to see how it could be done with PowerShell.

The challenge with a script like this is twofold:

  1. Email addresses (proxy addresses) are a multi-valued attribute, which can be tricky to work with.
  2. PowerShell is generally not case-sensitive, and therefore when we try to rename Mr. Gallalee’s email address in the screenshot below, we can see that it does not work:

WARNING: The command completed successfully but no settings of 'demolab.local/Users/Rob Gallalee' have been modified.

After a little bit of inspiration from a script written by Michael B Smith, I came up with the below:


$MailboxList = Get-Mailbox  -ResultSize unlimited

$MailboxList | % {

$LoweredList = @()
$RenamedList = @()

foreach ($Address in $_.EmailAddresses){
if ($Address.prefixstring -eq "SMTP"){
$RenamedList += $Address.smtpaddress + "TempRename"
$LoweredList += $Address.smtpaddress.ToLower()
}
}
Set-mailbox $_ -emailaddresses $RenamedList -EmailAddressPolicyEnabled $false
Set-mailbox $_ -emailaddresses $LoweredList

#Without this line the "Reply To" Address could be lost on recipients with more than one proxy address:
Set-mailbox $_ -PrimarySmtpAddress $_.PrimarySmtpAddress
}

This script works as follows:

  1. Puts all mailboxes into the $MailboxList variable.  If you don’t want all mailboxes,  edit the Get-Mailbox cmdlet as you see fit.
  2. Filters out X400 and other non-SMTP addresses.
  3. Creates an array called $RenamedList which stores each proxy address with “TempRename” appended to it (e.g. Rgallalee@demolab.localTempRename).
  4. Creates another array ($LoweredList) and use the “ToLower” method on each proxy address.
  5. Sets the proxy address for the user to the value of $RenamedList and then to $LoweredList.
    1. This is how we get around the case case insensitivity – name it to something else and then name it back.
  6. Step 4 and 5 don’t preserve the “Primary” / “Reply-To” address, so we set it back manually with the last line.

Note: This script turns off the email address policy for each user.

As always, feedback is welcome.

EDIT Dec 2018:
This is a similar approach, but for mailboxes migrated to Office 365. In this case, only the Primary SMTP addresses are targeted.

It may also be faster than the above, due to the fact we’re only operating against mailboxes that have uppercase (vs all of them).

Set-ADServerSettings -ViewEntireForest:$true

$TargetObjects = Get-RemoteMailbox -ResultSize Unlimited | Where {$_.PrimarySmtpAddress.ToLower() -cne $_.PrimarySmtpAddress}

Write-Host $TargetObjects.count "Remote mailboxes have one or more uppercase characters." -ForegroundColor Cyan

#Backup First
Function Get-FileFriendlyDate {Get-Date -format ddMMMyyyy_HHmm.s}
$DesktopPath = ([Environment]::GetFolderPath("Desktop") + '\')
$LogPath = ($DesktopPath + (Get-FileFriendlyDate) + "-UppercaseBackup.xml")

$TargetObjects | select DistinguishedName, PrimarySMTPAddress, EmailAddresses | Export-Clixml $LogPath
Write-Host "A backup XML has been placed here:" $LogPath -ForegroundColor Cyan
Write-Host

$Counter = $TargetObjects.Count

foreach ($RemoteMailbox in $TargetObjects) {

    Write-Host "Setting: " -ForegroundColor DarkCyan -NoNewline
    Write-Host $RemoteMailbox.PrimarySmtpAddress -ForegroundColor Cyan
    Write-Host "Remaining: " -ForegroundColor DarkCyan -NoNewline
    Write-Host $Counter -ForegroundColor Cyan

    Set-RemoteMailbox $RemoteMailbox.Identity -PrimarySmtpAddress ("TMP-Rename-" + $RemoteMailbox.PrimarySmtpAddress) -EmailAddressPolicyEnabled $false
    Set-RemoteMailbox $RemoteMailbox.Identity -EmailAddresses @{remove = $RemoteMailbox.PrimarySmtpAddress}

    Set-RemoteMailbox $RemoteMailbox.Identity -PrimarySmtpAddress $RemoteMailbox.PrimarySmtpAddress.ToLower()
    Set-RemoteMailbox $RemoteMailbox.Identity -EmailAddresses @{remove = ("TMP-Rename-" + $RemoteMailbox.PrimarySmtpAddress)}

    $Counter --
}

Write-Host
Write-Host "Done." -ForegroundColor DarkCyan

#End



Combining PowerShell Cmdlet Results

In my last post I used used New-Object to create an desirable output when the “Get-Mailbox” cmdlet didn’t meet my needs.  If your eyes glazed over trying to read the script, let me make it a bit simpler by focusing on a straight forward example.

Say you need to create a list of user’s mailbox size with their email address.  This sounds like a simple request, but what you’d soon find is that mailbox sizes are returned with the Get-MailboxStatistics cmdlet and the email address is not.  For that, you need to use another cmdlet, such as Get-Mailbox.

With the New-Object cmdlet, we are able to make a custom output that contains data from essentially wherever we want.

See this example:

$MyObject = New-Object PSObject -Property @{
EmailAddress = $null
MailboxSize = $null
}

In this example, I have created a new object with 2 fields, and saved it as the $MyObject variable.

For now, we’ve set the data to null, as shown below:

$MyObject

The next step is to populate each of those fields.  We can write to them one at a time with lines like this:

$MyObject.EmailAddress = (Get-Mailbox mcrowley).PrimarySmtpAddress
$MyObject.MailboxSize = (Get-MailboxStatistics mcrowley).TotalItemSize

Note: The variable we want to populate is on the left, with what we want to put in it on the right.

To confirm our results, we can simply type the variable name at the prompt:

$MyObject with data

Pretty cool, huh?

Ok, so now about that list.  My example only shows the data for mcrowley, and you probably need more than just 1 item in your report, right?

For this, you need to use the foreach loop.  You can read more about foreach here, but the actual code for our list is as follows:

(I am actually going to skip the $null attribute step here)

$UserList = Get-mailbox -Resultsize unlimited
$MasterList = @()
foreach ($User in $UserList) {
$MyObject = New-Object PSObject -Property @{
EmailAddress = (Get-Mailbox $User).PrimarySmtpAddress
MailboxSize = (Get-MailboxStatistics $User).TotalItemSize
}
$MasterList += $MyObject
}
$MasterList

$MasterList with data

Finally, if you wanted to make this run faster, we really don’t need to run “get-mailbox” twice.  For better results, replace the line:

EmailAddress = (Get-Mailbox $User).PrimarySmtpAddress

With this one:

EmailAddress = $User.PrimarySmtpAddress

Exchange Proxy Address (alias) Report

EDIT (April 4 2015):

This script has been updated significantly, please make sure you’re using version 5.

————–

Exchange Server stores user’s alternate email addresses as a multi-valued attribute within Active Directory.  For example, if my colleague Jorge has jdiaz@demolab.local as well as diazj@demolab.local, his proxyAddresses attribute would look like this:

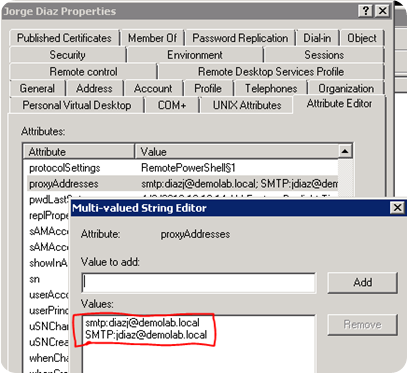

ADUC - ProxyAddresses

Notice, the capital SMTP vs. the lowercase smtp.  There can be only one uppercase SMTP, and this represents the primary, or “reply to” address.

While, it’s very easy to view someone’s proxy addresses (often called aliases, but don’t confuse it with the “alias” attribute) within the Exchange Management Console, it can be tough to work with in the Exchange Management Shell (PowerShell) due to the data being stored as a  “Multi-Valued” attribute.  The usual “Get-Mailbox” output not only shows all addresses as a single item, but in the case “mcrowley” below, we can see the shell truncates:

get-mailbox mcrowley | select emailaddresses

While there are ways (example1, example2) to manipulate this output on the screen, I recently needed to create a complete list of all users possessing one or more secondary email address, and document what those addresses were.

On the surface, this sounds simple.  We want a list of users who have more than 1 proxy address.  At first, I thought of something like this:

Get-Mailbox -Filter {emailaddresses -gt 1} | Select EmailAddresses

Get-Mailbox -Filter {emailaddresses -gt 1} | Select EmailAddresses

But we can see this doesn’t actually capture the correct users.  In the above example, LiveUser1 only has a single proxy address, but it was returned anyway.  This is because the result is actually converted to a number, and the “-gt” or “greater than” operation is done on this number; not what we want.

I have written a script to help!

Features:

  1. This script creates a CSV output of everyone’s SMTP proxy addresses.
  2. Reports to the screen the total number of users found.
  3. Reports to the screen the user(s) with the most proxy addresses.
  4. You can configure the threshold of users reported. For example, if you only wanted users with 2 or more proxy addresses included, you should change the line: “$Threshold = 0” to “$Threshold = 2”

Misc:

  1. Does not currently work with Exchange Online (planned enhancement).
  2. This uses “get-recipient” with no filters by default.  You may want to  replace this with something more restrictive, like “get-mailbox”, or use the -filter parameter.
  3. Requires PS 2.0 (for Exchange 2007, see here)

Here is a sample output, shown in excel:

Sample output to screen:

The guts of this script might help with this exact scenario, or really, anywhere you want to break out and evaluate multi-valued attributes.  Feel free to use it and adjust as you see fit!

Download the script here, or copy from the text below:

&lt;#

Features:
    1) This script Creates a TXT and CSV file with the following information:
        a) TXT file: Recipient Address Statistics
        b) CSV file: Output of everyone's SMTP proxy addresses.

Instructions:
    1) Run this from &quot;regular&quot; PowerShell.  Exchange Management Shell may cause problems, especially in Exchange 2010, due to PSv2.
    2) Usage: RecipientReportv5.ps1 server5.domain.local

Requirements:
    1) Exchange 2010 or 2013
    2) PowerShell 4.0


April 4 2015
Mike Crowley

http://BaselineTechnologies.com

#&gt;

param(
    [parameter(Position=0,Mandatory=$true,ValueFromPipeline=$false,HelpMessage='Type the name of a Client Access Server')][string]$ExchangeFQDN
    )

if ($host.version.major -le 2) {
    Write-Host &quot;&quot;
    Write-Host &quot;This script requires PowerShell 3.0 or later.&quot; -ForegroundColor Red
    Write-Host &quot;Note: Exchange 2010's EMC always runs as version 2.  Perhaps try launching PowerShell normally.&quot; -ForegroundColor Red
    Write-Host &quot;&quot;
    Write-Host &quot;Exiting...&quot; -ForegroundColor Red
    Sleep 3
    Exit
    }


if ((Test-Connection $ExchangeFQDN -Count 1 -Quiet) -ne $true) {
    Write-Host &quot;&quot;
    Write-Host (&quot;Cannot connect to: &quot; + $ExchangeFQDN) -ForegroundColor Red
    Write-Host &quot;&quot;
    Write-Host &quot;Exiting...&quot; -ForegroundColor Red
    Sleep 3
    Exit
    }

cls


#Misc variables
#$ExchangeFQDN = &quot;exchserv1.domain1.local&quot;
$ReportTimeStamp = (Get-Date -Format s) -replace &quot;:&quot;, &quot;.&quot;
$TxtFile = &quot;$env:USERPROFILE\Desktop\&quot; + $ReportTimeStamp + &quot;_RecipientAddressReport_Part_1of2.txt&quot;
$CsvFile = &quot;$env:USERPROFILE\Desktop\&quot; + $ReportTimeStamp + &quot;_RecipientAddressReport_Part_2of2.csv&quot;

#Connect to Exchange
Write-Host (&quot;Connecting to &quot; + $ExchangeFQDN + &quot;...&quot;) -ForegroundColor Cyan
Get-PSSession | Where-Object {$_.ConfigurationName -eq 'Microsoft.Exchange'} | Remove-PSSession
$Session = @{
    ConfigurationName = 'Microsoft.Exchange'
    ConnectionUri = 'http://' + $ExchangeFQDN + '/PowerShell/?SerializationLevel=Full'
    Authentication = 'Kerberos'
    }
Import-PSSession (New-PSSession @Session)

#Get Data
Write-Host &quot;Getting data from Exchange...&quot; -ForegroundColor Cyan
$AcceptedDomains = Get-AcceptedDomain
$InScopeRecipients = @(
    'DynamicDistributionGroup'
    'UserMailbox'
    'MailUniversalDistributionGroup'
    'MailUniversalSecurityGroup'
    'MailNonUniversalGroup'
    'PublicFolder'
    )
$AllRecipients = Get-Recipient -recipienttype $InScopeRecipients -ResultSize unlimited | select name, emailaddresses, RecipientType
$UniqueRecipientDomains = ($AllRecipients.emailaddresses | Where {$_ -like 'smtp*'}) -split '@' | where {$_ -NotLike 'smtp:*'} | select -Unique

Write-Host &quot;Preparing Output 1 of 2...&quot; -ForegroundColor Cyan
#Output address stats
$TextBlock = @(
    &quot;Total Number of Recipients: &quot; + $AllRecipients.Count
    &quot;Number of Dynamic Distribution Groups: &quot; +         ($AllRecipients | Where {$_.RecipientType -eq 'DynamicDistributionGroup'}).Count
    &quot;Number of User Mailboxes: &quot; + 	                    ($AllRecipients | Where {$_.RecipientType -eq 'UserMailbox'}).Count
    &quot;Number of Mail-Universal Distribution Groups: &quot; + 	($AllRecipients | Where {$_.RecipientType -eq 'MailUniversalDistributionGroup'}).Count
    &quot;Number of Mail-UniversalSecurity Groups: &quot; + 	    ($AllRecipients | Where {$_.RecipientType -eq 'MailUniversalSecurityGroup'}).Count
    &quot;Number of Mail-NonUniversal Groups: &quot; + 	        ($AllRecipients | Where {$_.RecipientType -eq 'MailNonUniversalGroup'}).Count
    &quot;Number of Public Folders: &quot; + 	                    ($AllRecipients | Where {$_.RecipientType -eq 'PublicFolder'}).Count
    &quot;&quot;
    &quot;Number of Accepted Domains: &quot; + $AcceptedDomains.count
    &quot;&quot;
    &quot;Number of domains found on recipients: &quot; + $UniqueRecipientDomains.count
    &quot;&quot;
    $DomainComparrison = Compare-Object $AcceptedDomains.DomainName $UniqueRecipientDomains
    &quot;These domains have been assigned to recipients, but are not Accepted Domains in the Exchange Organization:&quot;
    ($DomainComparrison | Where {$_.SideIndicator -eq '=&gt;'}).InputObject
    &quot;&quot;
    &quot;These Accepted Domains are not assigned to any recipients:&quot;
    ($DomainComparrison | Where {$_.SideIndicator -eq '&lt;='}).InputObject
    &quot;&quot;
    &quot;See this CSV for a complete listing of all addresses: &quot; + $CsvFile
    )

Write-Host &quot;Preparing Output 2 of 2...&quot; -ForegroundColor Cyan

$RecipientsAndSMTPProxies = @()
$CounterWatermark = 1

$AllRecipients | ForEach-Object {

    #Create a new placeholder object
    $RecipientOutputObject = New-Object PSObject -Property @{
        Name = $_.Name
        RecipientType = $_.RecipientType
        SMTPAddress0 =  ($_.emailaddresses | Where {$_ -clike 'SMTP:*'} ) -replace &quot;SMTP:&quot;
        }

    #If applicable, get a list of other addresses for the recipient
    if (($_.emailaddresses).count -gt '1') {
        $OtherAddresses = @()
        $OtherAddresses = ($_.emailaddresses | Where {$_ -clike 'smtp:*'} ) -replace &quot;smtp:&quot;

        $Counter = $OtherAddresses.count
        if ($Counter -gt $CounterWatermark) {$CounterWatermark = $Counter}
        $OtherAddresses | ForEach-Object {
            $RecipientOutputObject | Add-Member -MemberType NoteProperty -Name (“SmtpAddress” + $Counter) -Value ($_ -replace &quot;smtp:&quot;)
            $Counter--
            }
        }
        $RecipientsAndSMTPProxies += $RecipientOutputObject
    }


$AttributeList = @(
    'Name'
    'RecipientType'
    )
$AttributeList += 0..$CounterWatermark | ForEach-Object {&quot;SMTPAddress&quot; + $_}


Write-Host &quot;Saving report files to your desktop:&quot; -ForegroundColor Green
Write-Host &quot;&quot;
Write-Host $TxtFile -ForegroundColor Green
Write-Host $CsvFile -ForegroundColor Green

$TextBlock | Out-File $TxtFile
$RecipientsAndSMTPProxies | Select $AttributeList | sort RecipientType, Name | Export-CSV $CsvFile -NoTypeInformation

Write-Host &quot;&quot;
Write-Host &quot;&quot;
Write-Host &quot;Report Complete!&quot; -ForegroundColor Green
