Windows OS – Either Desktop or Server
Today I had a chance to interview the accomplished author and founder of KnowBe4, Stu Sjouwerman on the subject of Ransomware. Stu shared some great insight and real world experiences in dealing with ransomware outbreaks and the realities we’re faced with (e.g. actually paying the ransom).
If you missed it, you can view the recording for free, here:
In my last post I used used New-Object to create an desirable output when the “Get-Mailbox” cmdlet didn’t meet my needs. If your eyes glazed over trying to read the script, let me make it a bit simpler by focusing on a straight forward example.
Say you need to create a list of user’s mailbox size with their email address. This sounds like a simple request, but what you’d soon find is that mailbox sizes are returned with the Get-MailboxStatistics cmdlet and the email address is not. For that, you need to use another cmdlet, such as Get-Mailbox.
With the New-Object cmdlet, we are able to make a custom output that contains data from essentially wherever we want.
See this example:
$MyObject = New-Object PSObject -Property @{
EmailAddress = $null
MailboxSize = $null
}
In this example, I have created a new object with 2 fields, and saved it as the $MyObject variable.
For now, we’ve set the data to null, as shown below:
The next step is to populate each of those fields. We can write to them one at a time with lines like this:
$MyObject.EmailAddress = (Get-Mailbox mcrowley).PrimarySmtpAddress $MyObject.MailboxSize = (Get-MailboxStatistics mcrowley).TotalItemSize
Note: The variable we want to populate is on the left, with what we want to put in it on the right.
To confirm our results, we can simply type the variable name at the prompt:
Pretty cool, huh?
Ok, so now about that list. My example only shows the data for mcrowley, and you probably need more than just 1 item in your report, right?
For this, you need to use the foreach loop. You can read more about foreach here, but the actual code for our list is as follows:
(I am actually going to skip the $null attribute step here)
$UserList = Get-mailbox -Resultsize unlimited
$MasterList = @()
foreach ($User in $UserList) {
$MyObject = New-Object PSObject -Property @{
EmailAddress = (Get-Mailbox $User).PrimarySmtpAddress
MailboxSize = (Get-MailboxStatistics $User).TotalItemSize
}
$MasterList += $MyObject
}
$MasterList
Finally, if you wanted to make this run faster, we really don’t need to run “get-mailbox” twice. For better results, replace the line:
EmailAddress = (Get-Mailbox $User).PrimarySmtpAddress
With this one:
EmailAddress = $User.PrimarySmtpAddress
3/16/2012 UPDATE:
Exploit code published for RDP worm hole
————————————-
I don’t always post on Windows security updates, but when I do, it’s a Dos Equis near to my heart! Do you use Remote Desktop? Of course you do. That’s why you need to install this update immediately:
MS12-020: Vulnerabilities in Remote Desktop could allow remote code execution
This is important for anyone running just about any version of Windows, but especially if you’ve got any machine exposing Remote Desktop directly to the internet (such as a Terminal Server). Fortunately there is a mitigation for those who just cannot patch tonight: enable NLA for your Remote Desktop connections.
Read more here.
Hop to it! Microsoft says not to wait for a normal patch-cycle on this one…
Until now, there were no Remote Server Administration Tools (RSAT) available for Windows 7 SP1.
Microsoft released an updated version today which adds this support. You can download it here:
Remote Server Administration Tools for Windows 7 with Service Pack 1 (SP1)
Microsoft has released another great poster; this time for the new Hyper-V architecture within Windows 2008 R2 Service Pack 1.
You can download it by clicking here:

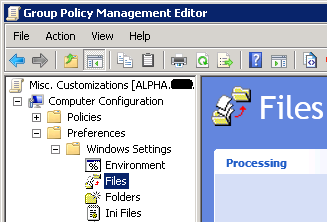

| 1. Navigate to: Computer Configuration\Preferences\Windows Settings\Files |  |
| 2. Right-click the “Files” node and select:
New > File
|
 |

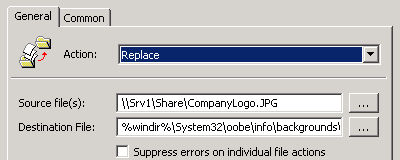

| 3. Select Replace
4. Type in the UNC path for your source file.
•In my example I used:
\\Srv1\Share\CompanyLogo.jpg •Remember this file needs to be <256K
•Also understand the permissions on this share need to allow the workstation’s computer account READ. If you leave the usual “Authenticated Users” you’ll be fine.
5. For the Destination File, type this exact text (without the quotes, and no line breaks):
“%windir%\system32\oobe\info\backgrounds\backgrounddefault.jpg”
|
 |

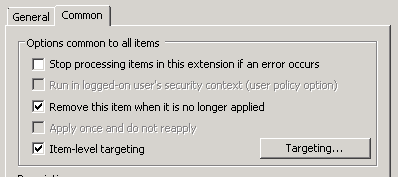

| 6. Click the “Common” tab
7. Select “Remove this item when it is no longer applied”. This will ensure your file is removed if:
•The GPO is deleted or disabled
•The workstation is moved to another OU where the policy is not linked
•The policy is filtered out
•You update your policy to send a new wallpaper file
|
 |

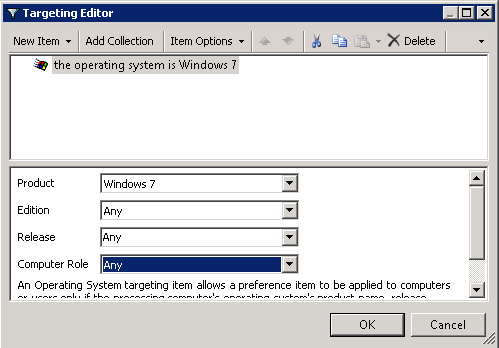

| 8. Optionally: Select Item-level targeting to specify only Windows 7 computers. This will ensure your file isn’t sent to versions of Windows that wouldn’t make use of it anyway. |  |
Just a quick note to remind everyone that Service Pack 1 for Windows 7 and Windows 2008 R2 has just now become available for download on TechNet & MSDN.
If you don’t have a TechNet or MSDN subscription you should see it on the Microsoft Download sites next Tuesday. [EDIT: Here is the download Link]
Be sure to check with each product group before installing this. Obviously it is supported with the OS itself (clustering, Hyper-V, RDS, etc) but you should seek a direct support statement like the one the Exchange group published.
You should also validate your 3rd party applications. You’ll note there may be some issues with VMware, for example…
For more information such as release notes or articles on what’s new, visit this page:
Windows Server 2008 R2 Service Pack 1
Finally, here is a screenshot:
Version 6.1.7601 Service Pack 1 Build 7601
Remote Desktop Services (formally Terminal Services) has dramatically improved and matured starting with the Windows 2008 launch. In many ways, it allows Citrix installations to be replaced by native Windows technologies.
You can read more here: http://microsoft.com/rds

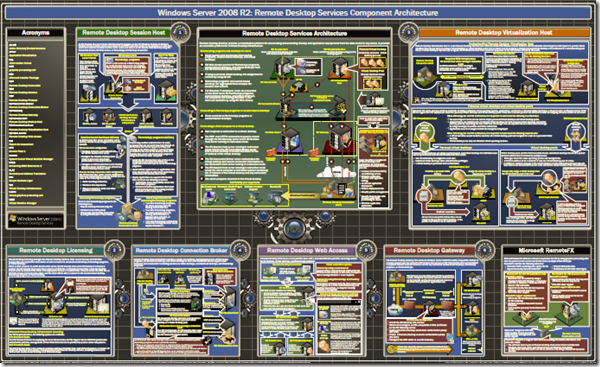

This week Microsoft released a very nice diagram/poster of the technology. Check it out here:
The long awaited 2008 R2 version of ADMT has been released to the web. You can download it here:
A good read, if you’re looking at using this tool is:
Active Directory Migration Guide
&
Active Directory Migration Tool (ADMT) Guide: Migrating and Restructuring Active Directory Domains
However for complex migrations/transitions/whatever I prefer the Quest Migration Manager for Active directory.
Here is some info from the ADMT download page:
The Active Directory Migration Tool version 3.2 (ADMT v3.2) provides an integrated toolset to facilitate migration and restructuring tasks in an Active Directory Domain Services infrastructure.
Overview
The Active Directory Migration Tool version 3.2 (ADMT v3.2) simplifies the process of migrating objects and restructuring tasks in an Active Directory® Domain Service (AD DS) environment. You can use ADMT v3.2 to migrate users, groups, service accounts, and computers between AD DS domains in different forests (inter-forest migration) or between AD DS domains in the same forest (intra-forest migration). ADMT can also perform security translation (to migrate local user profiles) when performing inter-forest migrations.
System Requirements
- Supported Operating Systems: Windows Server 2008 R2
- ADMT can be installed on any computer capable of running the Windows Server 2008 R2 operating system, unless they are Read-Only domain controllers or in a Server Core configuration.
- Target domain: The target domain must be running Windows Server 2003, Windows Server 2008, or Windows Server 2008 R2
- Source domain: The source domain must be running Windows Server 2003, Windows Server 2008, or Windows Server 2008 R2
- The ADMT agent, installed by ADMT on computers in the source domains, can operate on computers running Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7, and Windows Server 2008 R2.
Additional Information
- PES v3.1 is a separate download also available on the Microsoft Download Center. See the Related Downloads section below.
- ADMT v3.2 is the last version of the tool which will support migration operations involving Windows Server 2003, Windows Server 2008, or Windows Server 2008 R2 source domains, target domains, or domain controllers.
- To obtain customer support if you are performing migration operations involving NT 4.0 (with SP4 or higher) or Windows 2000 Server source domains, or domain controllers, please contact your Microsoft Services representative or visit http://www.microsoft.com/microsoftservices.
One really cool benefit of being a MCT is that we get a subscription to TechNet Direct! This means I was able to get my RTM copy of Windows Server 2008 R2 earlier this afternoon!!
You can get a copy of the RTM bits yourself as a 180 trial, here.
I have a few machines that I run in my lab environment, and I figured I’d upgrade them to the latest OS so that I would have a head start for when my clients want to start installing it later this year. Many of you know the basics of installing an operating system, and I’m not going to lie – this isn’t much different than installing Server 2008, but I figured I’d document my progress and post it here for those who might benefit.
Because my lab already exists on Server 2008 SP2 Enterprise Edition x64 (you cannot upgrade from x86), I wanted to do an in-place upgrade, rather than a clean install. After doing the first machine, and gaining confidence, I moved on to the 2nd; which was my domain controller. Because I’m a little insane (& lazy), I wanted to try the upgrade via remote desktop. By golly it worked! I wouldn’t recommend this for, um, lots of reasons – but I can say it DOES work!
Before upgrading the Active Directory domain controller, I first browsed to the .\support\adprep folder and ran the following two commands:
adprep /forestprep
adprep /domainprep
These commands allow for the installation of the first 2008 R2 domain controller. Be sure to do this before you begin the upgrade routine. Active Directory is beyond the scope of what I want to cover today, but if you’re curious about adprep; more info here.
For this article, the images used are from Hyper-V (you’ll notice the window frame). This is not the computer I did remotely, but the process didn’t change.
So without further delay, here are the screenshots:
| 1)Run setup.exe | ![clip_image002[4]](https://ailzvq.blu.livefilestore.com/y1mZD4erZLAafPoBhoRK6yjUL7YQvdHMfdffB8W2dJ8ikUHX-A_ibecnRbJ6dIVW8sIdUFg1L47DuWep5hEx7a0GvBiIxqlCpUn8vdkX35oWhAbXk-xqwkPkZav6XEyGE-oyrGJ8YleGpN-V-wj9Cg0pg/clip_image002[4][2].jpg "clip_image002[4]") |
| 2)Click Install now | ![clip_image004[4]](https://ailzvq.blu.livefilestore.com/y1mGsrPyWg9vh0h0hW8M-WCUOx5yoBAelxjtHf1pETFEh_YwE-LKEVbdb8x4bBIWrCga6PDnHfeBkukp2kSUeyUpxtnR7dutuLoMbEn8YwOdHkmoDSEeNiI4sE8CWtc1f7KapPL4iLcJcl5MreBswUIug/clip_image004[4][2].jpg "clip_image004[4]") |
| 3)The 2008 R2 media is hot off the presses, so there is not yet any updates, but as a best practice, click “Go online to get the latest updates for installation” | ![clip_image006[4]](https://ailzvq.blu.livefilestore.com/y1mOPVwuIOuyWtdLAAUV3K2TKTD-p-Fdv4CiOiyhPJrEFdn8QYABreK1LgbmO07rH_iJHyzLb8mg3o7Qro7ZYqgPGlBiBptSu40Yt8UYs17oVQ7A3mZGQjVChZJMyuB4kAiSHdUzv823JZHZ2wCw5SikA/clip_image006[4][2].jpg "clip_image006[4]") |
| 4)Select the version of Windows Server 2008 R2 you wish to upgrade to.
Note: Windows 2008 R2 is x64 only. If you currently run an x86 version of Windows you will not be able upgrade. |
![clip_image008[4]](https://ailzvq.blu.livefilestore.com/y1m9-iY2Vn925nOtTVvUOuMSmNDaMtodRsK3PBEsKs5zSCU6IAAEm2wJqXrKJkJyBIfADmNYngOg4AnFOQKGr5-KPvA1osT37krlvUsKVTFJNIZG3AFU2PqWux_pqw2ykaQO-svZW0uR0QlOFq86CGfnQ/clip_image008[4][2].jpg "clip_image008[4]") |
| 5)Read and accept the license. | ![clip_image010[4]](https://ailzvq.blu.livefilestore.com/y1mFogoM32A0140YHT-Q90tP0VXM5oFRTiIC259SC0XuA5MQLH8_9IsEmLd6iUANcUNiUjcOvEgLHvq6muQiaU0hMAK1R_mIdHFN_28J3z4TNi41-alBG2ITgnjsJ4X_vY8JFnHapQaNs6mRvl5nrXjZQ/clip_image010[4][2].jpg "clip_image010[4]") |
| 6)As I mentioned previously, I am upgrading. | ![clip_image012[4]](https://ailzvq.blu.livefilestore.com/y1mFbsZXsUyXBxw5n_SI_QrsppgKcwU3InpKJ6fBBhyV9pyoLDyJMpZc6PemjW8j3NCYgy47ehQjAb0oomenBC28xq0qaq5Zt3GcQqxqhUeKBk_VrjOijbEvdRGc3Fc8oiZMqp5hX68WRl8tCPtpOuhsQ/clip_image012[4][2].jpg "clip_image012[4]") |
| 7)This process ensures compatibility. More on this process here. | ![clip_image014[4]](https://ailzvq.blu.livefilestore.com/y1m4lLnZaOcTSdDU8m324moWWaJwn9_SlWmlsNcydFHwxnC702DOA5jm2-BicZv7XQe18eFpkRNt1t0hq3zf6YJx8yIgIdx8a-v2RBbupbTznnMoEQLRyR_WiQ4iqi4IUBS8oax7dd1vf5EI9WPsvwjBg/clip_image014[4][2].jpg "clip_image014[4]") |
| 8)You will get a screen at the end of the previous step indicating weather or not you pass the list of known compatibility issues. This particular image (off screen) indicates I have other user accounts logged in, and they must first log out. (I had a separate RemoteApp session open).
This tool places a log file on your desktop, regardless of pass or fail so that you can review it later. Once I closed the other sessions, I re-ran setup and was greeted with a “Next” button instead of “Close”. |
![clip_image016[4]](https://ailzvq.blu.livefilestore.com/y1mdA6KUbMHLwfKtLQBU7hSxDbhS3AMxqPFOj8LQYXmVqzCUJaAreDmNoxKWprMYh9dJxXNhhhlc4lFd2377bINi0e4mUPMC_fphNCj7Xyd69ro2YrvUbrbc5nK-fiaol4XS4OgELlqSG5i6vBo7c75fg/clip_image016[4][2].jpg "clip_image016[4]") |
| 9)The install begins! | ![clip_image018[4]](https://ailzvq.blu.livefilestore.com/y1mRvdUxuvis5Lo0_cgMvbQ9lTMX4l8oTZ-2rYddriMHcy2RJp0ttxdmT8anU67xYYYkhLhnm908cgUym9xNfGX1yvx31PkXZ-nCJxs7QGLsXpk_sNyqzN_Xl3uukoXk6V5Ms1QmmNOZmFr6D82H9YfmA/clip_image018[4][2].jpg "clip_image018[4]") |
| 10)After a while it automatically reboots the machine. From now until the end of the install it is “off” the network. | ![clip_image020[4]](https://ailzvq.blu.livefilestore.com/y1mTrHO8dlel0YjJ1adHpxBggzbB7NJID-hbhdH-ls5IgjNSDjNLDzDnVZOxNLOfKsk5qH9b6ghBFYV5SYbbIXRyp03PVik80rCP7vMZTPo7vqkHOEzgF7kFvy8SaG2Ewm3rBMYxVtR8yeXBLGYRvnj5A/clip_image020[4][2].jpg "clip_image020[4]") |
| 11)Setup restarts automatically | ![clip_image022[4]](https://ailzvq.blu.livefilestore.com/y1mWYCoJ2mgQmq5XyFOSIbUFJ-CqqThqKPEoNUbSU7A45QiXulCdaATJASiDmmhX8K8ZRJfGQvBlmymsVXehw5M6ogyxgiZJun_ctpKDfVuZHl7G9RcIteAUCAsXmRLKIM022rktvj2p5L0u1yHIoxCqw/clip_image022[4][2].jpg "clip_image022[4]") ![clip_image024[4]](https://ailzvq.blu.livefilestore.com/y1matTl29KBOwExnv_DNmPZpMG4eF9FFiJFD-CAet61GNvQLMjgEf1l5Twj0PaSE7_AtzTdXAyeE5A_N8B9n8ATZWrxfJrIE4tOhrNPk2IKpW4b8i_ArnytU5n2MTwlKyW-Cy7idMRbvMDBkms3xOKRlA/clip_image024[4][2].jpg "clip_image024[4]") |
| 12)The installer picks up where we left off.
This is the 2nd stage of the upgrade. |
![clip_image026[4]](https://ailzvq.blu.livefilestore.com/y1mgW8Yf5Ongc2VjYQCbejMLODRUkN89quqs3-5Bovgvo46taX_3TF8zPBO-QQNB5gB23PNQlQajgBE1RRcYVcjjNrKUZbadwH3BFfJkucU7nHTebDvTF1WmTxmlqqb3jaj6M-pzpYiNsoZay9Abu06zw/clip_image026[4][2].jpg "clip_image026[4]") |
| 13)Go find something else to do for 20 minutes. It will be fine… | ![clip_image028[4]](https://ailzvq.blu.livefilestore.com/y1mZYfUTt2ZS1NYyXfLPp-4CtXdqMHMbnZSAbj6KqchyApaWX_UqcW9OdiKVMzqoirbtkGlgOYjlDaZHZCfPI9Mew8IqP_rBLrK8e2OZFFOmFVif2IHBuR2oVmSyrkbxX5v4bzwe0clcGB4jA4hM6hUCw/clip_image028[4][2].jpg "clip_image028[4]") |
| 14)Getting close! | ![clip_image030[4]](https://ailzvq.blu.livefilestore.com/y1mj8aO61g2lDcCWlBQvL2hHHyYw2hT4XDD0DbNYacQ-qRwHNJjjO7bFgVLE-Cedfz1s0qO2th4tPByPcf5Guv9NxyJFLe97TKi_DKxYgj8Rn-a7zUg0LAEGwjec-P-jm6Ppg5VCL92oSrLJ71L-XREJQ/clip_image030[4][2].jpg "clip_image030[4]") |
| 15)Almost there! | ![clip_image032[4]](https://ailzvq.blu.livefilestore.com/y1miExzKZ7ec1E353BFuIb4qjSD47cM-jY4qG8ERGjJofI0l6nWqDXsoQK9tI0IC5D7UynxO4yW7-qidi50MLPiSOe3gy9XMyTRKuQ1gxWkaIPkPRtuiTEOMDfQE8YRD3llREmflnbYhc2GG_1ztDyGgg/clip_image032[4][2].jpg "clip_image032[4]") |
| 16)Start, Run, Winver –>
(Note: Build 7600) |
![clip_image034[4]](https://ailzvq.blu.livefilestore.com/y1mARYoAsudia1BXbb8F7okodVjdBu0vvXInUi3OeoO_A_1xqzdnv4Rys46_YabrrRVn6DWDrysQ0Qmghzcv1x3J1EYP58Vqd0yRDfwp2RZ0_D9d_bdebRVgQqVfNq3kYXgge6mLXaJjI7I2fbYiT1nPw/clip_image034[4][2].jpg "clip_image034[4]") |
Once you check everything out for yourself, don’t forget to activate! You’ve got 10 days before it starts to remind you.
And there ya have it! Happy Upgrading!
So this one is a little obscure, but lemme paint a quick picture:
A few years back, I had a small client site that had some remote users and executives that would connect to their office workstations from home via VPN / Remote Desktop. One day an executive got a new computer and “we” forgot to enable Remote Desktop for her. Normally this could have been addressed by a GPO, but it was a really small client site, and we just didn’t put that much complexity into the configuration. Anyway, this same day the user wanted to work from home and she was not able to connect. She proceeded to call me during dinner to inform me of this situation! I wanted to help but was thinking it would be tough to allow remote access REMOTELY! But I thought of a way! After I completed the below steps I contacted the user and she was able to connect!
I was so proud of myself I saved the steps and now I want to share it with everyone today. I used a combination of a free utility called psexec which can be downloaded here. I also used the built-in command prompt and registry editor that comes with Windows. Look at the below window, and follow the command prompt progress. I’ve commented along the way in green.
|
C:\Documents and Settings\admin>”C:\Documents and Settings\admin\Desktop\psexec.exe” \\computer0123 cmd.exe
PsExec v1.94 – Execute processes remotel Copyright (C) 2001-2008 Mark Russinovich Sysinternals – http://www.sysinternals.com
Microsoft Windows XP [Version 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp.
C:\WINDOWS\systeadmin2>hostname computer0123 #verify hostname C:\WINDOWS\systeadmin2>netsh firewall add portopening TCP 3389 rdp enable Ok. #now I’m sure remote desktop will be allowed through the firewall
C:\WINDOWS\systeadmin2>netstat -a
Active Connections
Proto Local Address Foreign Address State TCP computer0123:epmap computer0123.Eedge.net:0 LISTENING TCP computer0123:microsoft-ds computer0123.Eedge.net:0 LISTENING TCP computer0123:39259 computer0123.Eedge.net:0 LISTENING TCP computer0123:netbios-ssn computer0123.Eedge.net:0 LISTENING TCP computer0123:netbios-ssn computer0123.Eedge.net:0 LISTENING TCP computer0123:microsoft-ds kaserver.eedge.net:10442 ESTABLISHED TCP computer0123:1332 kadata.eedge.net:microsoft-ds ESTABLISHED TCP computer0123:1535 kaserver.eedge.net:netbios-ssn ESTABLISHED TCP computer0123:2033 kaserver.eedge.net:1025 TIME_WAIT TCP computer0123:1060 computer0123.Eedge.net:0 LISTENING TCP computer0123:10001 computer0123.Eedge.net:0 LISTENING UDP computer0123:microsoft-ds *:* UDP computer0123:isakmp *:* UDP computer0123:1025 *:* UDP computer0123:1026 *:* UDP computer0123:1027 *:* UDP computer0123:4500 *:* UDP computer0123:ntp *:* UDP computer0123:netbios-ns *:* UDP computer0123:netbios-dgm *:* UDP computer0123:1900 *:* UDP computer0123:ntp *:* UDP computer0123:netbios-ns *:* UDP computer0123:netbios-dgm *:* UDP computer0123:1900 *:* UDP computer0123:ntp *:* UDP computer0123:1028 *:* UDP computer0123:1044 *:* UDP computer0123:1209 *:* UDP computer0123:1900 *:* #I see Remote Desktop is not enabled, as port 3389 is not in the list #I then use regedit from my machine and remotely connect to the registry on her workstation and enable remote desktop. (HKLM\SYSTEM\CurrentControlSet\Control\Terminal Server\fDenyTSConnection=0)
C:\WINDOWS\systeadmin2>shutdown -m \\computer0123 -r The machine is locked and can not be shut down without the force option.
C:\WINDOWS\systeadmin2>shutdown -m \\computer0123 -r –f
C:\Documents and Settings\admin> #it works now |
For those who are lost in the command prompt, just look at these steps instead:
